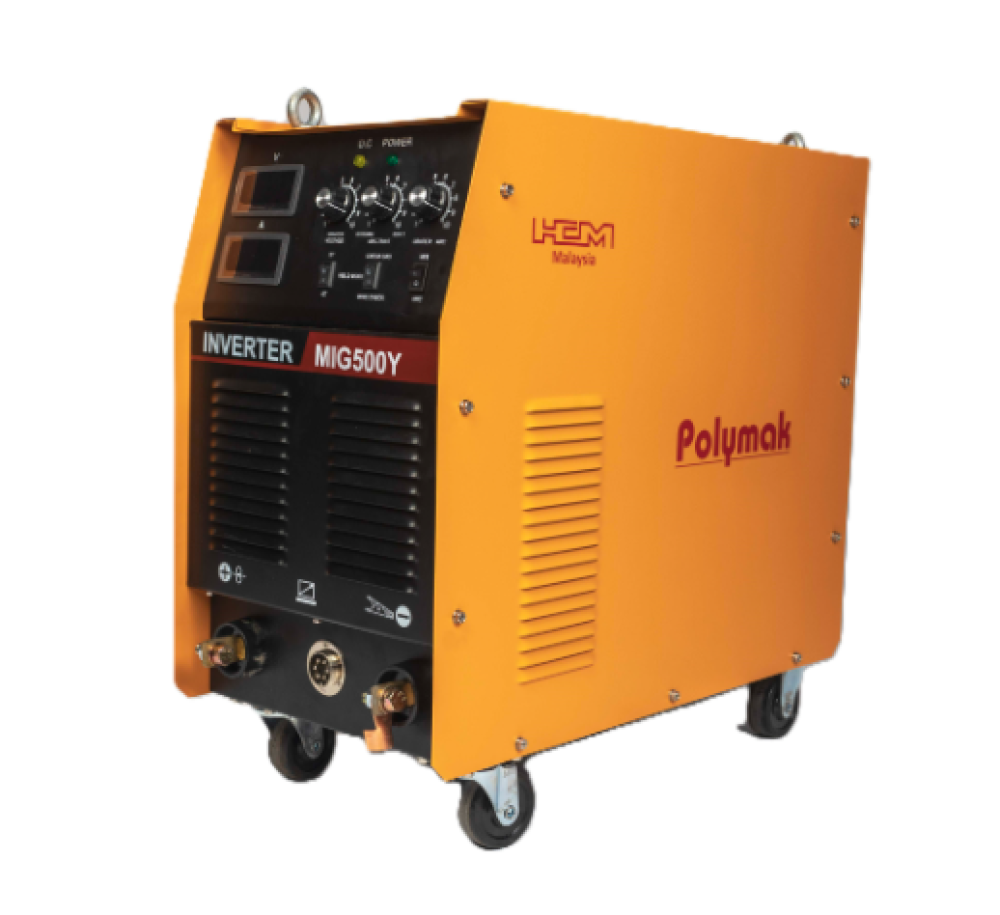

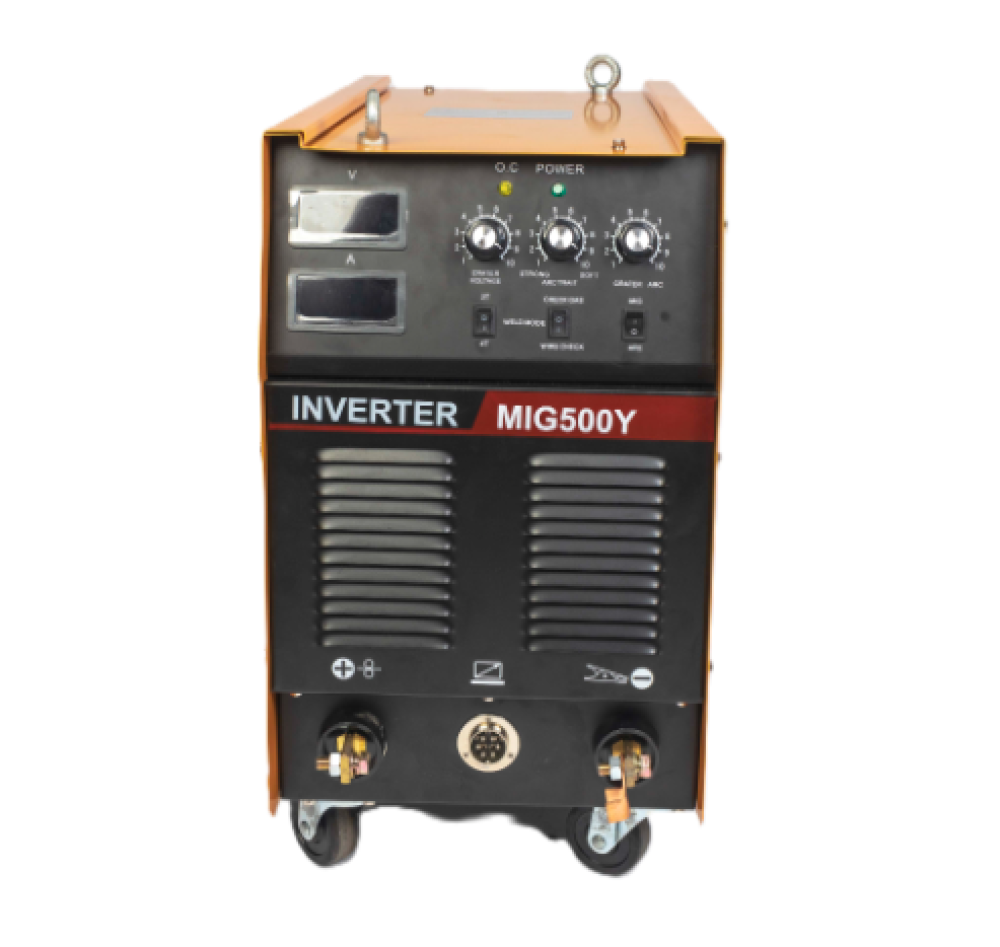

MIG500Y

INVERTER WELDING MACHINE

Input Power Supply : 3Ph, AC415V
Rate Input Current(A) : 50
Rated Input Power Capacity (KVA)) : 24
MIG Output current range (A-DC) : 50 – 500
MMA Output current range (A-DC) : 40 – 400
Output Open Circuit Voltage (V) : 65
Rate Duty Cycle(%) : 60
Post-Flow Time(Sec) : 01
Power Fotor(COS) : 0.7
Power Efficiency (%) : 85
Protection And Insulation Class : IP21S, F
Weight (KG) : 36
