PM CUT 80
PM CUT 80
Power Tools | Welding Machine

PM CUT 80

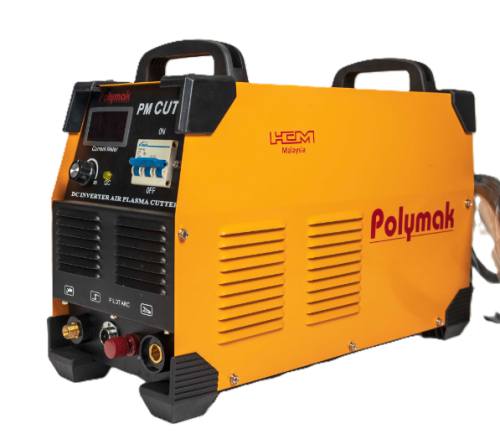

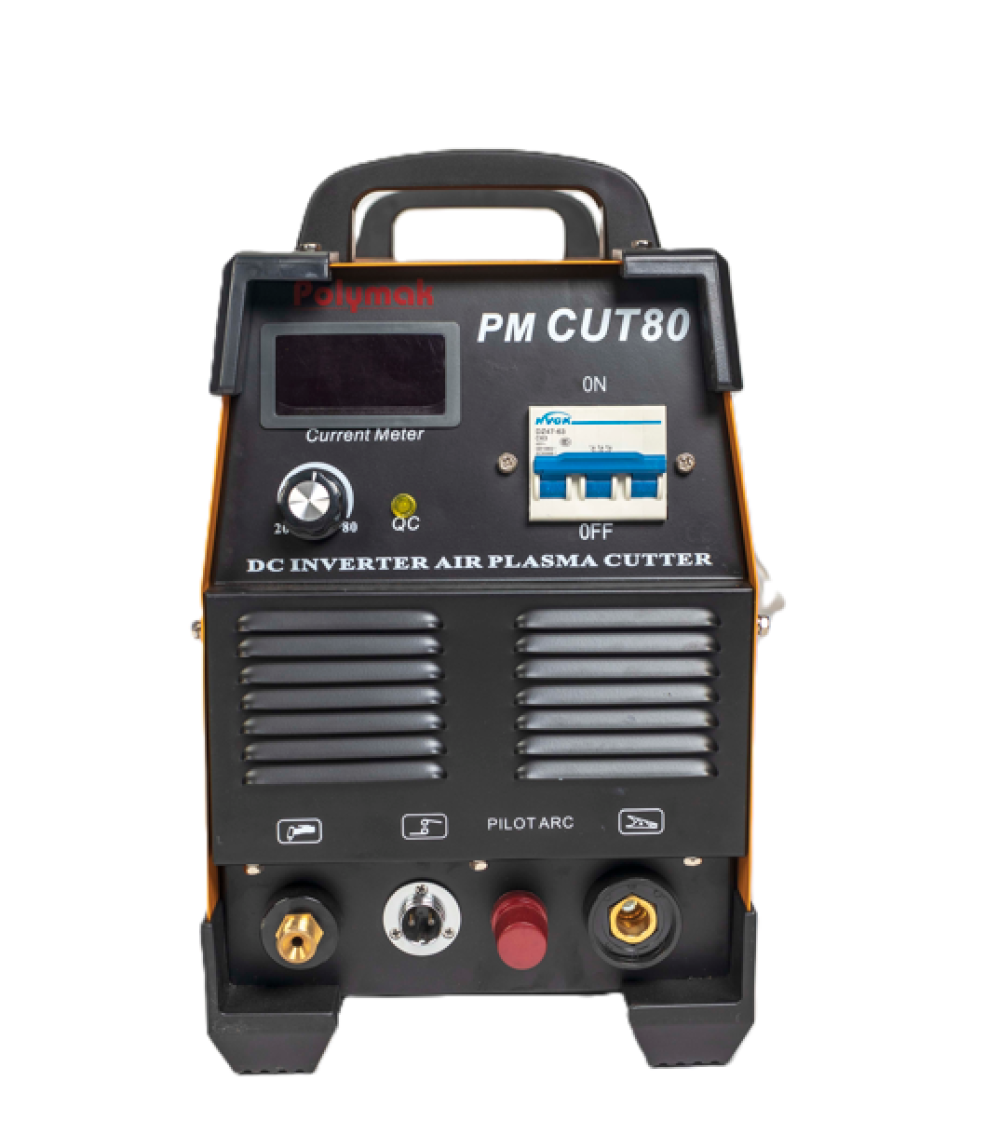

Air Plasma Machine 80A

See Technical Details

We guarantee all of our products against defective workmanship and faulty materials for 6 months from the date of purchase. Learn More

Technical Information

Rated Input Voltage AC 415V ± 15% 50/60Hz
Rated Input Current 11
Output Current Range (A) 20-70
Output Open Circuit Voltage (V) 240
Rated Duty Cycle (%) 60%
Post Flow Time (sec) 5 sec
Arc Force HF
Power Efficiency (%) 85
Power Factor 0.93
Protection & Insulation Class IP21S,F
Quality Cutting Thickness 15 mm
MOSFET/IGBT Mosfet - 24 Nos
Recommended Air Compressor 3HP -160 Litre Tank Capacity
Torch P80 - 7.5 meters length
Weight (Kgs) 25 Kgs

More Details

Air Plasma Machine 80A

The Polymak Trust

Fast cut and smooth cutting feeling make the tool ideal for tile, stone cutting at decoration projects and stone workshops; strong over-load capability provides benchmark endurance in heavy load application like wall chasing in concrete material.

Warranty

Polymak is confident of their quality. Warranty information will vary by product. Please Contact Us for additional information.

Service

Extensive measures are made to ensure all products are made to the very highest standards and meet all relevant industry regulations.

Spare Parts

You can download relevant product manuals for this item by clicking on the below link.

Documents

All product related documents

Disclaimer

Polymak will endeavour to be as accurate as possible regarding product descriptions, features, and availability. However, unless specifically stated otherwise in writing on this Site, we do not warrant that product descriptions or other content of this Site are accurate, reliable, current, or error-free. We reserve the right to make changes in information about description, or availability without notice. We have made every effort to display as accurately as possible the colours of our products & packaging material; however, the actual colour you will see will depend on many factors, and we cannot guarantee that your computer will accurately display our colours. The inclusion of any products on this Site does not imply or warrant that these products will be available for purchase.
